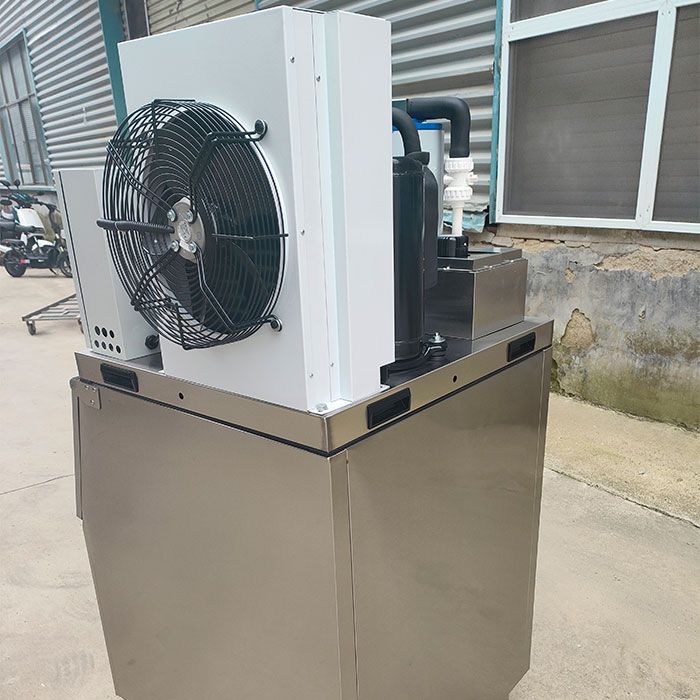

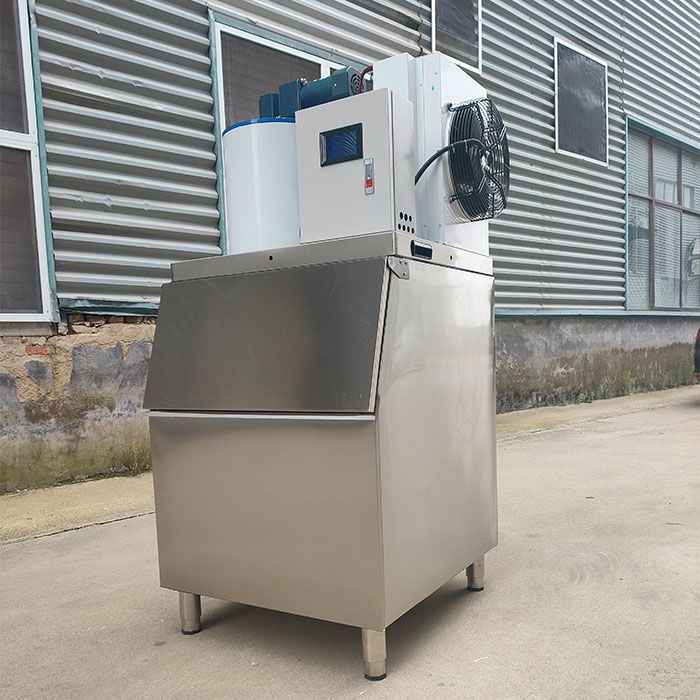

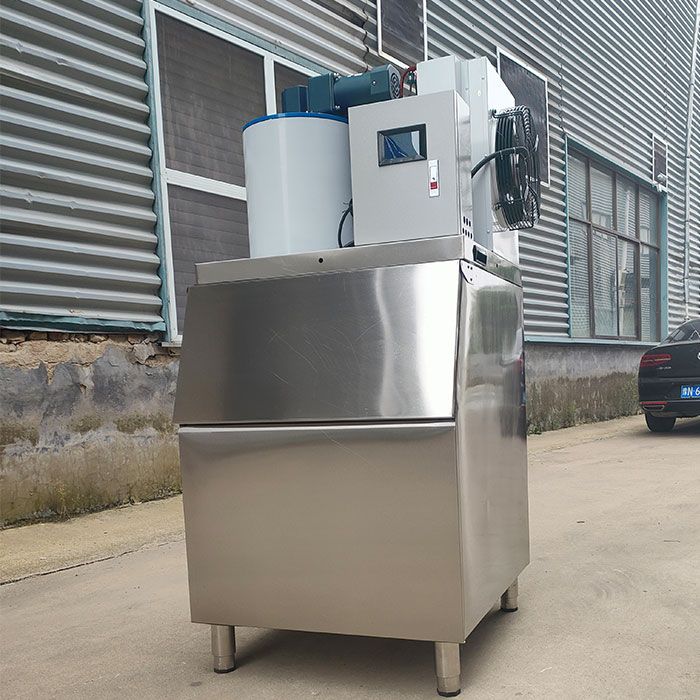

Flake ice is the fastest-cooling ice format: thin, dry slices with a large contact area that melt quickly without bruising product. The MX-FI range covers 500 kg to 5 tonnes per day in a compact, mobile cabinet with an integrated storage bin — a single unit that drops into fish markets, poultry plants and produce packing sheds.
The vertical SS304 evaporator drum and hardened ice scraper keep output dry and consistent in hot, humid conditions. Choose air cooling for standard workshops or water cooling for enclosed engine rooms; both packages are matched to your site's ambient temperature before shipment.
Key features
500 kg – 5,000 kg daily capacity range
SS304 vertical evaporator drum
Dry, sub-cooled flake ice at 1–2.5 mm
Air-cooled or water-cooled condenser options
Integrated insulated storage bin on castors
Technical specifications
Parameter
Value
Daily Capacity
500 kg – 5,000 kg / 24 h
Ice Shape
Dry flake, 1–2.5 mm thick
Evaporator
Vertical drum, SS304
Refrigerant
R404A / R507 / R22
Cooling Mode
Air-cooled or water-cooled
Power Supply
380 V, 50 / 60 Hz (220 V optional)
Bin Capacity
150 – 1,000 kg integrated storage
Warranty
12 months
Typical applications
Fish markets and seafood processing, poultry slaughtering, supermarkets and distribution, concrete cooling, chemical and dye processing.
Packing & shipping
The machine is wrapped in plastic film, fixed on a steel pallet or in a plywood case, then loaded and secured inside the container. We supply the packing list, commercial invoice, bill of lading and certificate of origin. Fumigation and marine insurance can be arranged on request.
Tell us the machine you need — get a full quotation in 12 hours
Send us your capacity target, product type, voltage and destination port. Our engineers will recommend the right model, confirm price and lead time, and quote shipping to your door.
