Industrial Ice Block Making Machine

Industrial ice block and tube ice plants from 1 to 20 tonnes per day for fisheries, markets and concrete cooling.

1–20 T/dayBlock / TubeBrine or DirectLow Power

Industrial Ice Block Making Machine

$4,800 – $28,000Indicative EXW price range · MOQ 1 Set · Lead time 30–45 Days

Industrial ice block and tube ice plants from 1 to 20 tonnes per day for fisheries, markets and concrete cooling.

ModelMX-IB5T
CategoryRefrigeration & Ice Machines
MOQ1 Set
Lead Time30–45 Days
Trade TermsFOB / CFR / CIF / EXW / DDP
PaymentT/T, L/C, Credit Card, Western Union
Overview

About the MX-IB5T

The MX-IB range covers brine-tank block ice and direct-expansion tube ice systems. Block ice machines are the workhorse of fisheries and markets in hot climates, while tube ice is preferred where fast cooling and easy handling matter.

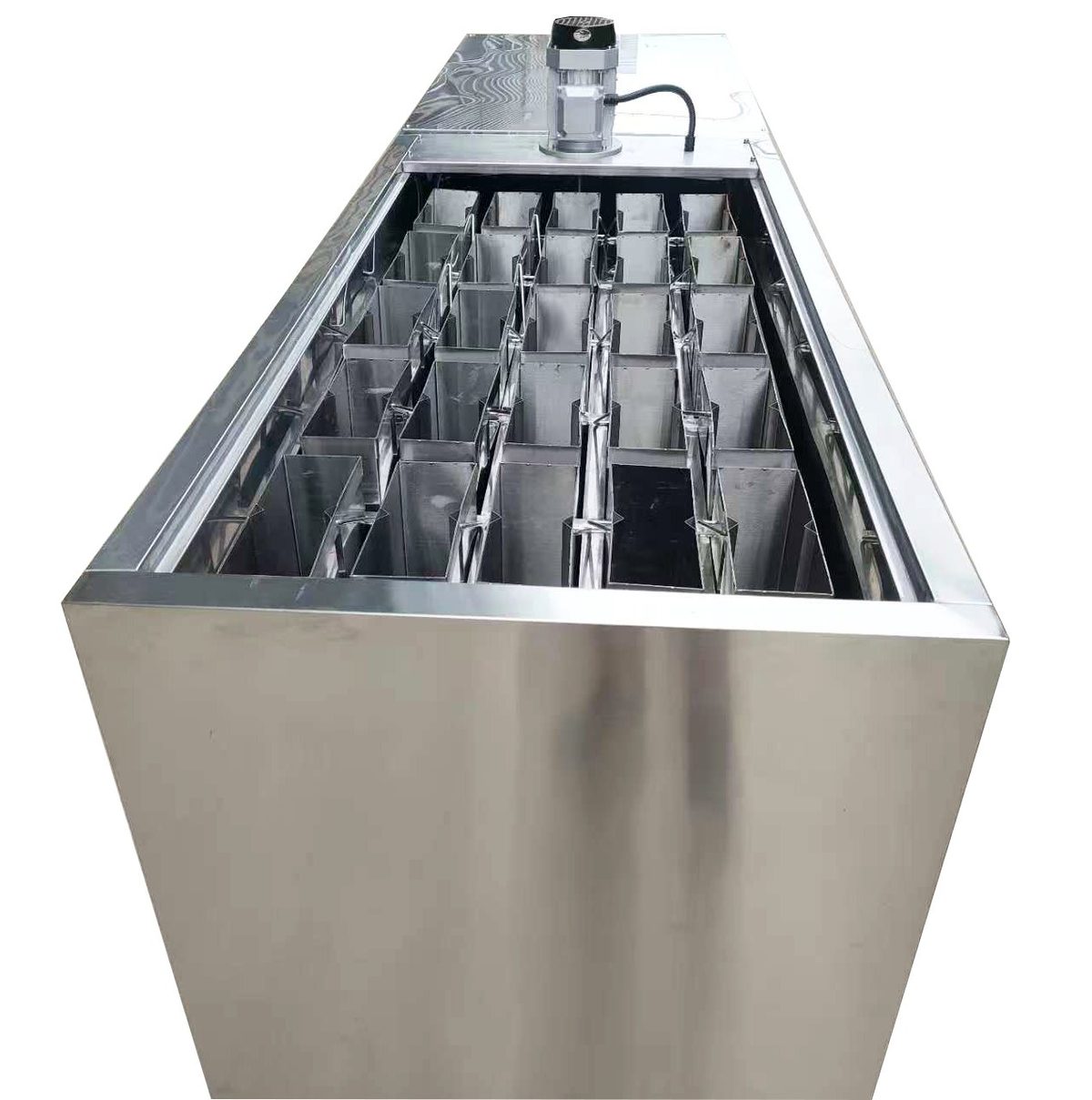

Ice cans are made from galvanised or stainless steel and are lifted by an overhead gantry or a hydraulic crane. The refrigeration package is matched to ambient conditions at your site, which is essential for reliable tropical operation.

Key features

  • 1–20 tonnes per day capacity range
  • Brine tank or direct expansion designs
  • Galvanised or stainless ice cans
  • Overhead gantry or hydraulic can crane
  • Tropical-rated compressors and condensers

Technical specifications

ParameterValue
ModelMX-IB1T to MX-IB20T
Capacity1 – 20 tonnes per day
Ice TypeBlock ice or tube ice
Block Weight10 / 25 / 50 kg (selectable)
Freezing Time8 – 14 hours per cycle (block)
RefrigerantR404A / R507 / NH3 (large systems)
Voltage380 V, 50 / 60 Hz
MaterialStainless / galvanised steel
Warranty12 months

Typical applications

Fishing ports, fish markets, cold chain, concrete cooling, poultry processing, beverage plants.

Packing & shipping

The machine is wrapped in plastic film, fixed on a steel pallet or in a plywood case, then loaded and secured inside the container. We supply the packing list, commercial invoice, bill of lading and certificate of origin. Fumigation and marine insurance can be arranged on request.
