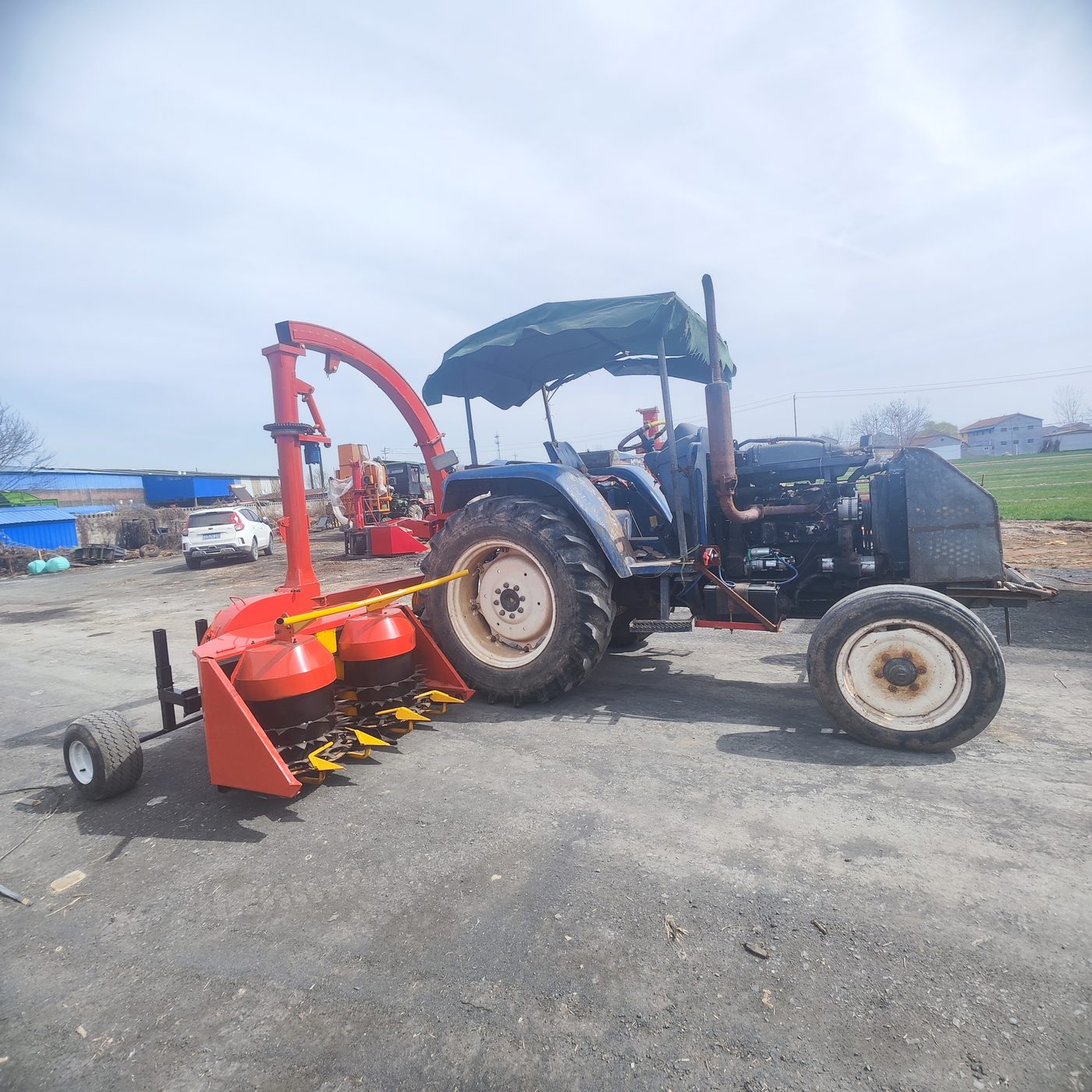

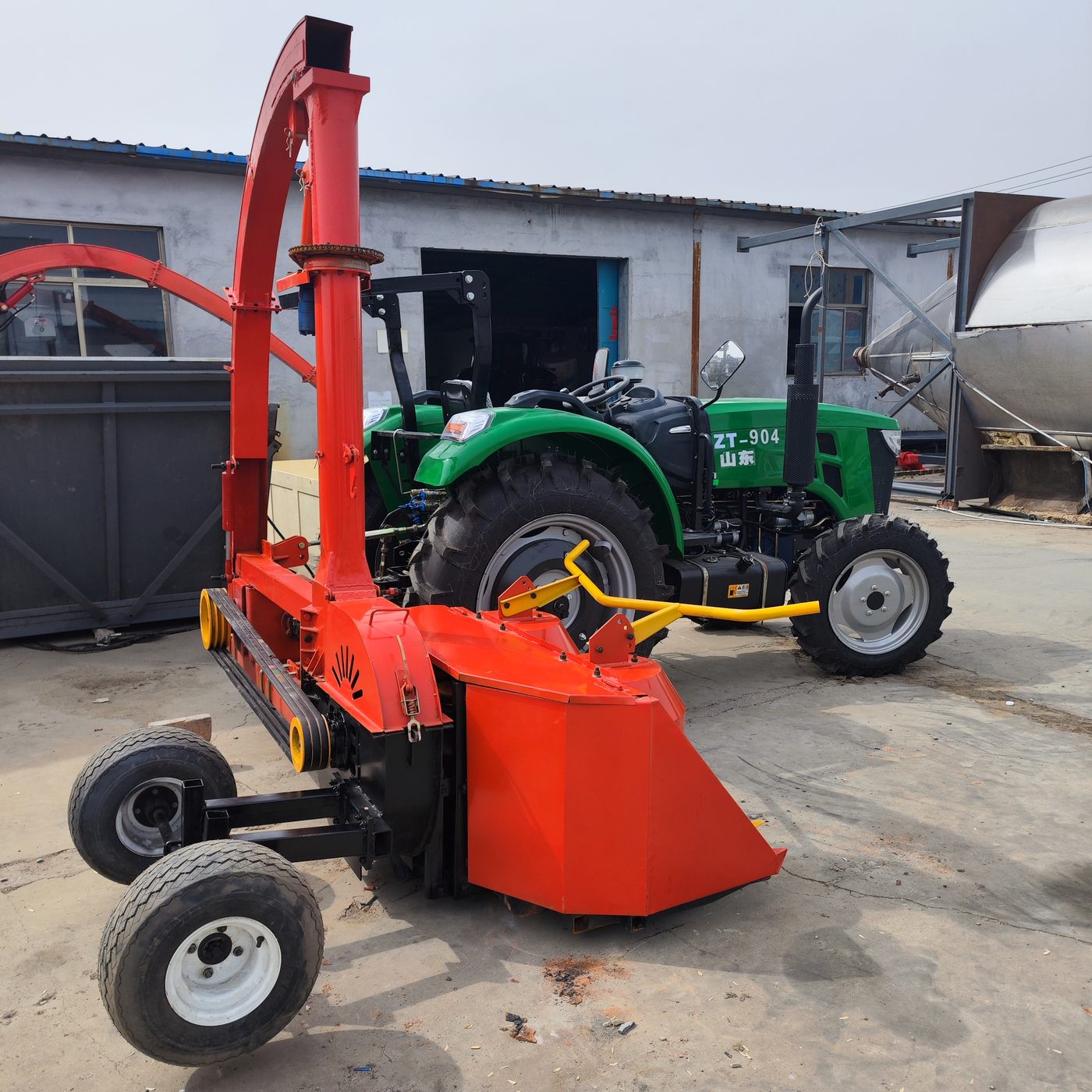

Designed for small and medium livestock farms, the MX-SH4 mounts on the three-point hitch of a 50–100 hp tractor and is driven directly from the PTO, so no separate engine is needed. A high-speed cutting cylinder with hardened blades produces 10–30 mm chop length, ideal for silage compaction.
A blower chute throws material directly into a trailer running alongside, letting one operator cut and collect in a single pass. Adjustable machine height protects the field and avoids soil contamination in the silage.
Key features
PTO driven — no auxiliary engine required
Hardened cutting blades with adjustable 10–30 mm chop length
High blower for trailer loading in one pass
Height adjustment to protect the field
Compact and manoeuvrable for small and sloped plots
Technical specifications
Parameter
Value
Model
MX-SH4 / MX-SH6 / MX-SH8
Capacity
4 / 6 / 8 tonnes per hour
Tractor Required
50 – 100 hp
Mounting
3-point hitch, PTO driven
Chop Length
10 – 30 mm (adjustable)
Working Width
1,200 – 2,200 mm
Blade Material
Hardened alloy steel
Dimension
1,800 × 1,300 × 1,600 mm (MX-SH4)
Warranty
12 months
Typical applications
Corn silage, pasture grass, sorghum, alfalfa, straw collection for cattle, sheep and dairy farms.
Packing & shipping
The machine is wrapped in plastic film, fixed on a steel pallet or in a plywood case, then loaded and secured inside the container. We supply the packing list, commercial invoice, bill of lading and certificate of origin. Fumigation and marine insurance can be arranged on request.
Tell us the machine you need — get a full quotation in 12 hours
Send us your capacity target, product type, voltage and destination port. Our engineers will recommend the right model, confirm price and lead time, and quote shipping to your door.
