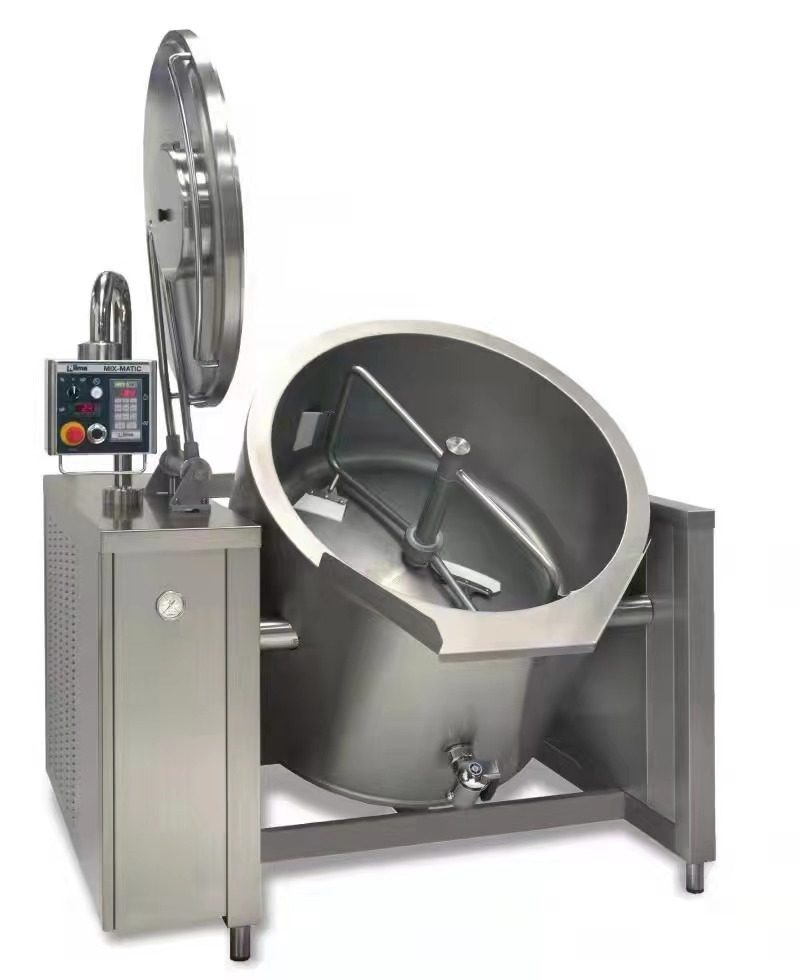

The MX-CD line cooks syrup to the required moisture level in a vacuum cooker, then deposits it into moulds at a controlled temperature for uniform weight and shape. An automatic stick-inserting unit handles lollipop formats, while the cooling tunnel sets the candy before de-moulding.

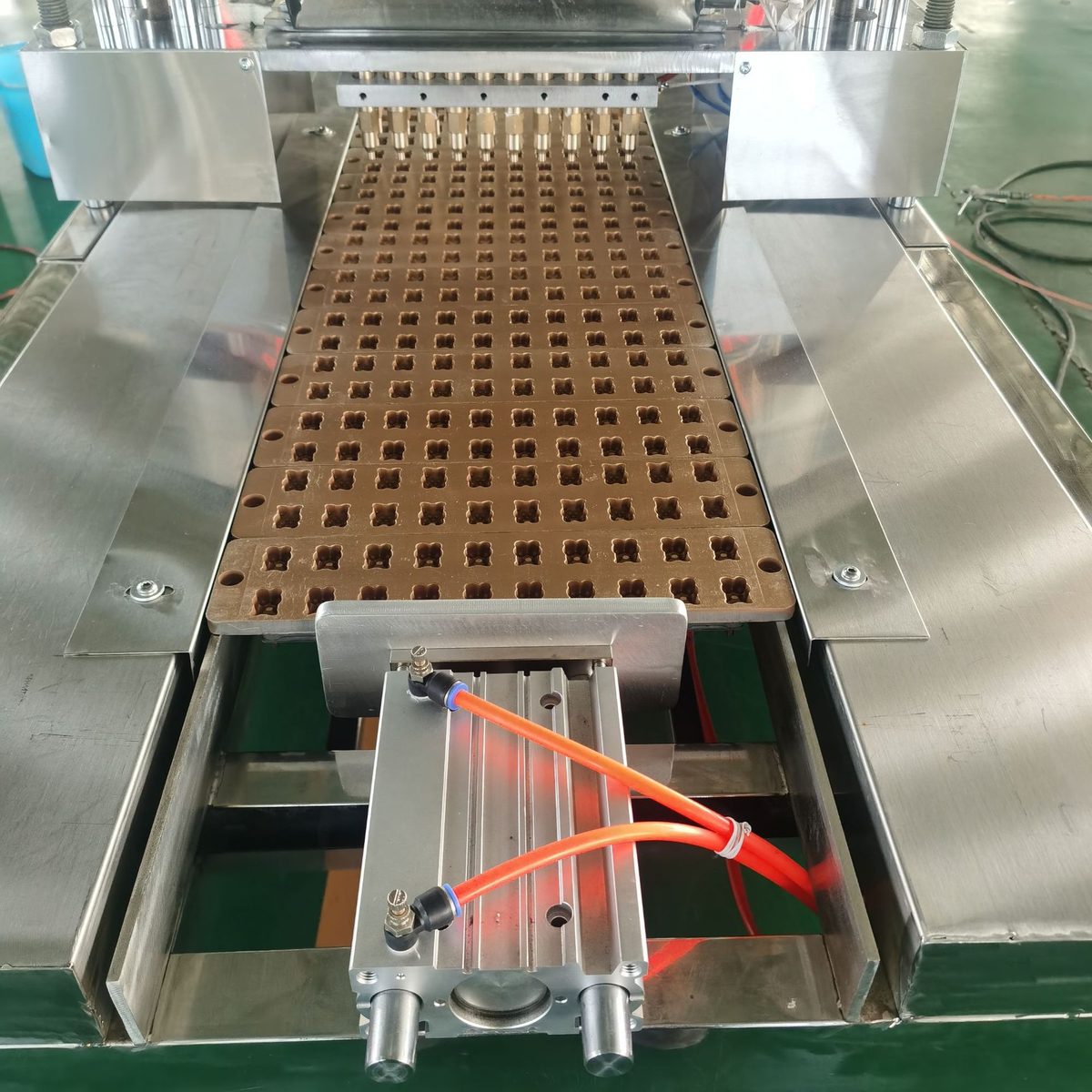

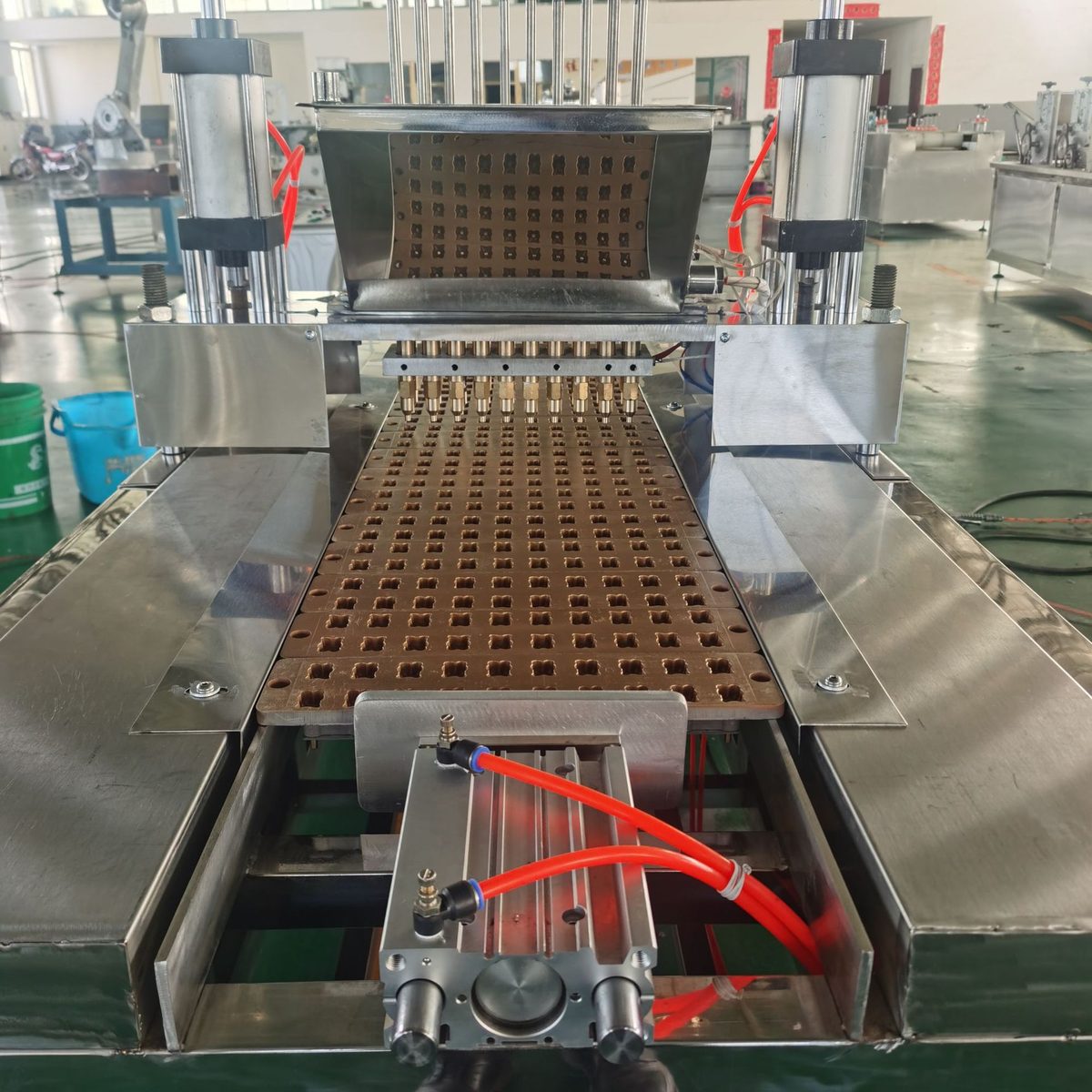

The depositor uses a precision piston with heated nozzles to prevent sugar crystal build-up. Mould plates are interchangeable, giving you product flexibility without a second line.
Key features
Vacuum cooking for consistent syrup moisture and colour
Heated precision depositor for uniform candy weight
Automatic stick insertion for lollipop formats

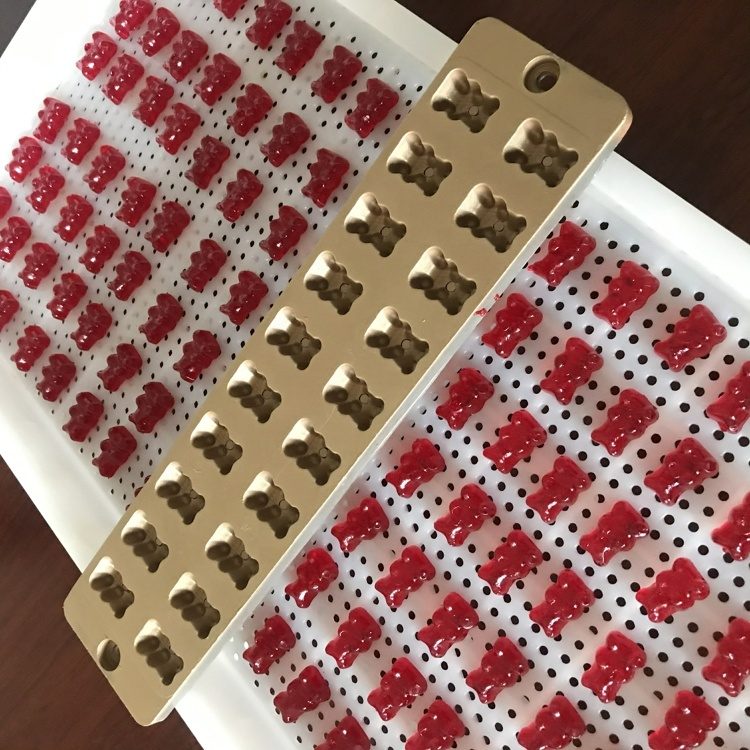

Interchangeable mould plates for product range
Optional wrapping and counting integration
Technical specifications
Parameter
Value
Model
MX-CD150 / MX-CD300 / MX-CD600
Capacity
150 / 300 / 600 kg per hour
Candy Weight
2 – 12 g per piece (adjustable)
Mould Cavities
Per product drawing
Voltage
380 V, 50 Hz
Power
25 – 75 kW
Heating
Steam or electric
Material
SUS 304, food-grade moulds
Warranty
12 months
Typical applications
Hard candy, lollipops, fruit drops, mint candy, deposited jelly candy.
Packing & shipping
The machine is wrapped in plastic film, fixed on a steel pallet or in a plywood case, then loaded and secured inside the container. We supply the packing list, commercial invoice, bill of lading and certificate of origin. Fumigation and marine insurance can be arranged on request.
Tell us the machine you need — get a full quotation in 12 hours
Send us your capacity target, product type, voltage and destination port. Our engineers will recommend the right model, confirm price and lead time, and quote shipping to your door.
